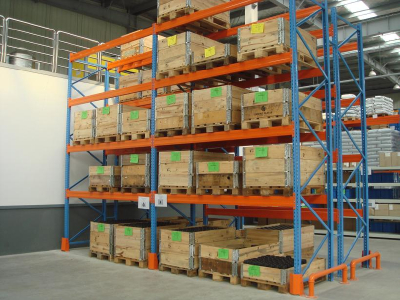

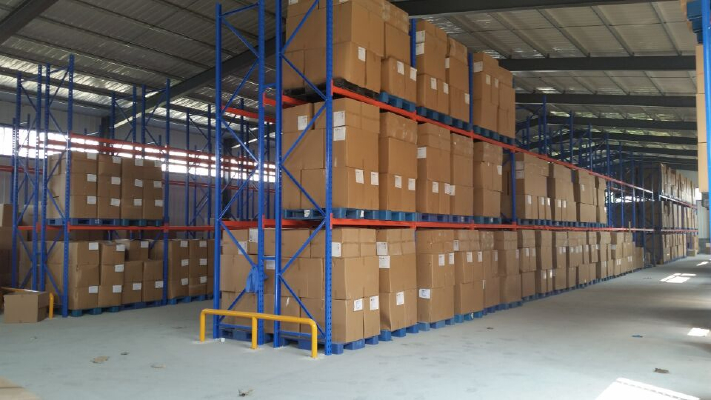

Warehouse Adjustable Steel Selective Pallet Rack
Product description
Pallet Rack is a common racking system in use today. Pallet racking systems typically come in one of two configurations: a roll formed, or clip-in configuration, and a structural bolt-together configuration.
Features of JT Pallet Rack:
(1) Pallets can be located, accessed and moved individually.
(2) Infinitely adjustable and offering a wide range of options and components to accommodate
specialized needs.
(3) Maximize space use in any warehouse configuration while retaining optimum product
accessibility.
(4) Strength and rigidity prevents compression damage to goods.
(5) Bottom level of pallets can be stored on the floor, lowering structure costs.
(6) It provides high capacity storage, is easily installed and adjusted, and has low equipment
and capital costs.
Company information
Jinan Jiutong Storage Equipment Co., Ltd. is one of the standard large-scale production base that specialized in the R&D,design,manufacture,install and consultation
service of storage rack equipment, logistics conveyor systems.
FAQ
1.Q:are you factory or trading company?
A:we're factory and experienced export to all over the world
2.Q:where is your factory located? How can I visit there?
A:we're in Jinan,near port is Qingdao,You can fly to Jinan international airport directly.
We will pick you up
3.Q:what is term of payment?
A:TT,50% as deposit,the balance against the copy of B/L.
4.Q:what is delivery times?
A:within 15 days after your deposit..
5.Q:samples are available?
A:yes, free sample.
6.Q:what is the materials?
A:Cold-rolled steel
7.Q:what is the way of the transport?
A:generally by sea,if you have special requests,per your request.
Contact
Please inform us the listed questions in your inquiry for quick quotation:
1) The warehouse drawing
2) The size of your warehouse
3) The size of shelving(length*width*height)
4) How many layers you want
5) The loading capacity of each layer
6) The RAL color you want
- Size: 0.3
- Place of Origin: China
- Brand Name: Jiutong
- Model Number: JT-PR
- Weight: 100.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
Specification of Racks:
| Rack Size(L*W*H mm) | Pallet(pieces) | Loading capacity(kg) | Upright Size(mm) | Price |
| 2200*900*2600 | 6 | 1000 | 80*60*1.5 | ** |
| 2500*1000*3000 | 6 | 1250 | 80*60*1.5 | ** |
| 2500*1000*3300 | 6 | 2000 | 90*60*2.0 | ** |
Remark: All specs refer to 2 layers, we can customize per your request.
We can produce pallet racking system's loading capacity:1-16T according to your request.
And also different racking sizes are available.
Specification of Uprights& Beams: the loading capacity tested by authorised organization.
| Beam size | Upright 60*40*1.2mm | Upright 80*50*1.2mm | Upright 80*45*1.2mm |
| 1200mm | 859kg | 859kg | 859kg |
| 1200mm | 859kg | 859kg | 859kg |
| 1200mm | 859kg | 859kg | 859kg |
| 1200mm | 859kg | 859kg | 859kg |
Upright Heights: 2400mm,3000mm,3600mm,4200mm, 4800mm,5400mm
Beam Lengths: 600,750, 900, 1200 and 1500mm
Upright Centres: 900, 1200, 1500, 1800 and 2400mm
Weight Carrying Capacity: Arm - Maximum load 820kg (subject to design )
Upright: Maximum Load 3200kg
Finished: Powder Coated
