Features:
(1) Pallets can be located, accessed and moved individually.
(2) Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
(3) Maximize space use in any warehouse configuration while retaining optimum product accessibility.
(4) Strength and rigidity prevents compression damage to goods.
(5) Bottom level of pallets can be stored on the floor, lowering structure costs.
(6) It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
- Size: 0
- Place of Origin: shandong
- Brand Name: Jiutong
- Model Number: JT-PR
- Weight: 0.000 kg
Upright Heights: 2400mm,3000mm,3600mm,4200mm, 4800mm,5400mm
Beam Lengths: 600,750, 900, 1200 and 1500mm
Upright Centres: 900, 1200, 1500, 1800 and 2400mm
Weight Carrying Capacity: Arm - Maximum load 820kg (subject to design )
Upright: Maximum Load 3200kg
Finished: Powder Coated

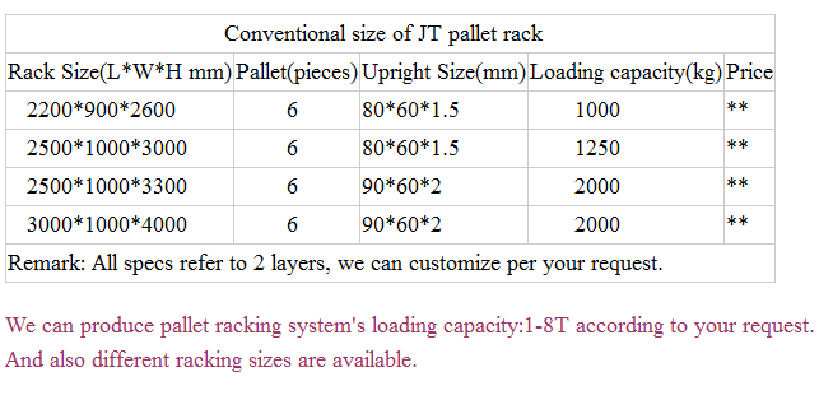

Standard SPECS:
Beam size
Upright 60*40*1.2mm
Upright 80*50*1.2mm
Upright 80*45*1.2mm
1200mm
859kg
1984kg
4345kg
1500mm
550kg
1270kg
2780kg
1800mm
383kg
882kg
1931kg
2000mm
311kg
717kg
1572kg
2500mm
198kg
455kg
997kg
